Windows Admin Center: install, secure and actually use the gateway

Tested onStandard / Datacenter · Build 26300.9457 · x64

E2Copy

Build

26300.9457

Edition

Standard / Datacenter

Architecture

x64

Support

Lab (WAC 2606 gateway)

Evidence

E2Reproduced in the lab

Verified

2026-10-29

Test machine

PVE VM 361; Windows 11 Pro 26H2 26300.9457 gateway; WAC 2606; HTTPS 6516; self-signed cert; local admin winlab

Page type

Server role

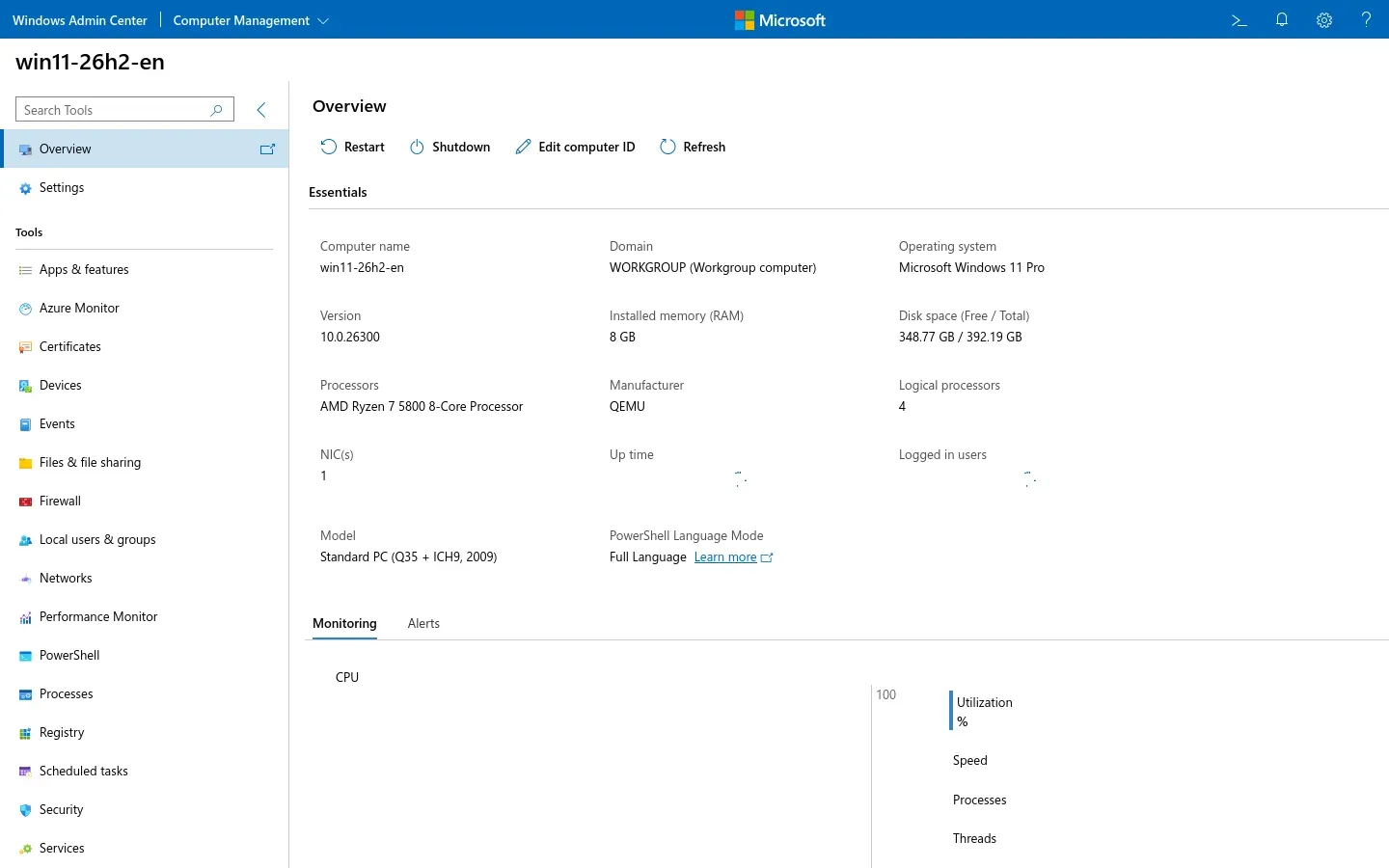

VM 361: WAC 2606 managing the Windows 11 26H2 gateway itself. The tools list and overview are real; Server 2025-specific management was not reproduced. Click to open full size.

The short answer

Windows Admin Center is a browser-based management gateway. You install it on a Windows Server or Windows client, open https://gateway:port, sign in, and add the machines you want to manage.

It is not a monitoring stack, not a backup, and not a reason to expose RDP or WAC to the internet. The useful mental model:

• Gateway — the WAC service, certificate, port, identity.
• Managed node — a server/PC reached over WinRM/SMB.
• Tools — extensions loaded per node (files, PowerShell, registry, updates…).

This page is E2 for the gateway install and UI (WAC 2606 on Windows 11 26H2) and E1 for Server 2025-specific management, because the lab had no second Server node or domain.

What the lab actually did

Item	Lab value
Gateway OS	Windows 11 Pro 26H2, 26300.9457
WAC	2606
Port	HTTPS 6516
Certificate	Self-signed, generated at install
Sign-in	Local admin winlab
Managed node	The gateway itself (win11-26h2-en)
Browser	Firefox through an SSH tunnel; Chromium failed with ERR_NETWORK_CHANGED on the same tunnel

The installer downloaded from aka.ms/WACDownload was a PE executable, not an MSI, in this run. That matters:

C:\WAC.msi /VERYSILENT /SUPPRESSMSGBOXES /NORESTART /HTTPSPortNumber=6516 /SSL_CERTIFICATE_OPTION=generate

A real MSI would use msiexec /i ... SME_PORT=... SSL_CERTIFICATE_OPTION=generate. Check the file header before choosing the command; MZ means EXE, D0 CF 11 E0 means MSI.

Install choices

Choice	Lab	Production guidance
Gateway OS	Windows 11 client	Windows Server for a shared admin gateway; client is fine for a single admin
Port	6516	Any free HTTPS port; document it
Certificate	Self-signed	Internal CA/trusted cert with the DNS name
Identity	Local admin	Entra ID/AD with least privilege; MFA at the access layer
Network	Management LAN/VPN	Never port-forward WAC to the internet
HA	None	WAC supports HA configurations; treat as a separate design

Minimum checks before install:

winver
Get-Service WindowsAdminCenter -ErrorAction SilentlyContinue
Get-NetTCPConnection -State Listen | Where-Object LocalPort -eq 6516

After install, verify the service and listener; a browser error before the service is running is not a WAC bug.

Sign in and add a server

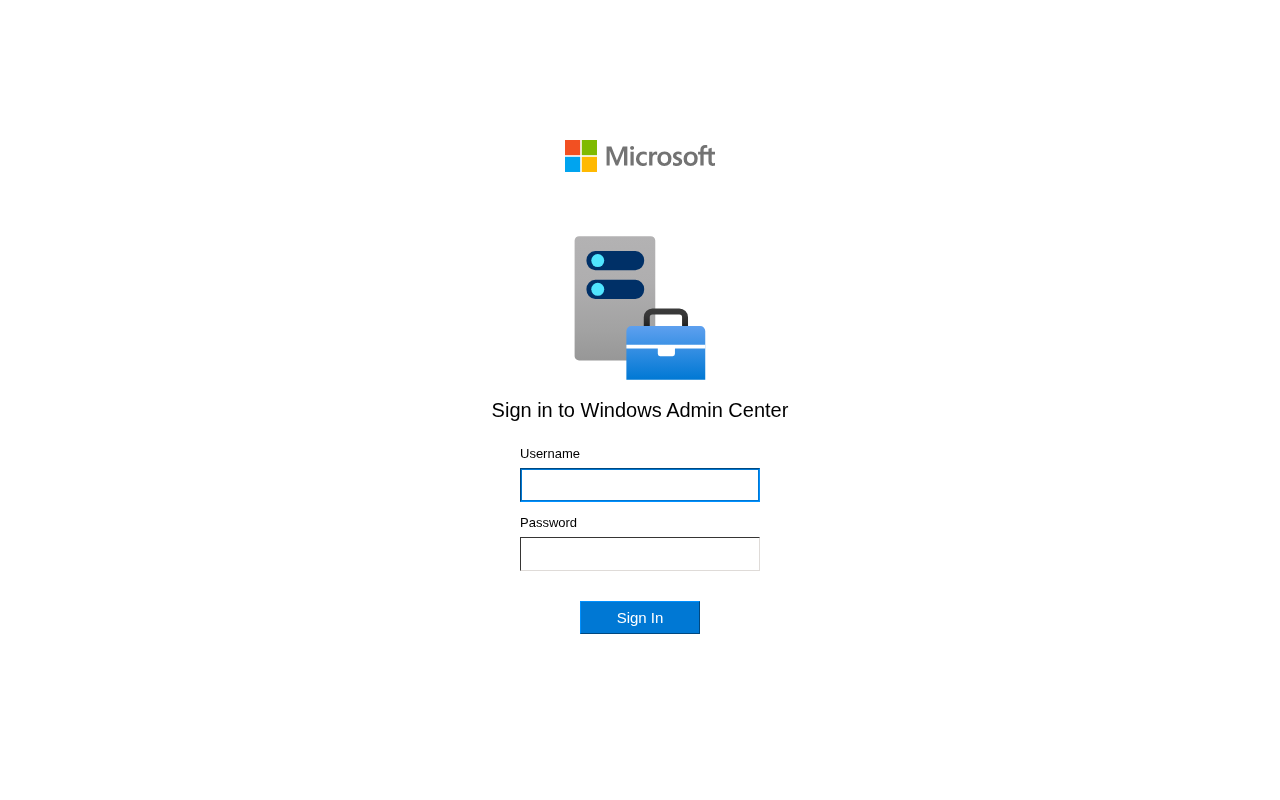

Gateway sign-in. Use a named admin account, not a shared local admin, outside the lab.

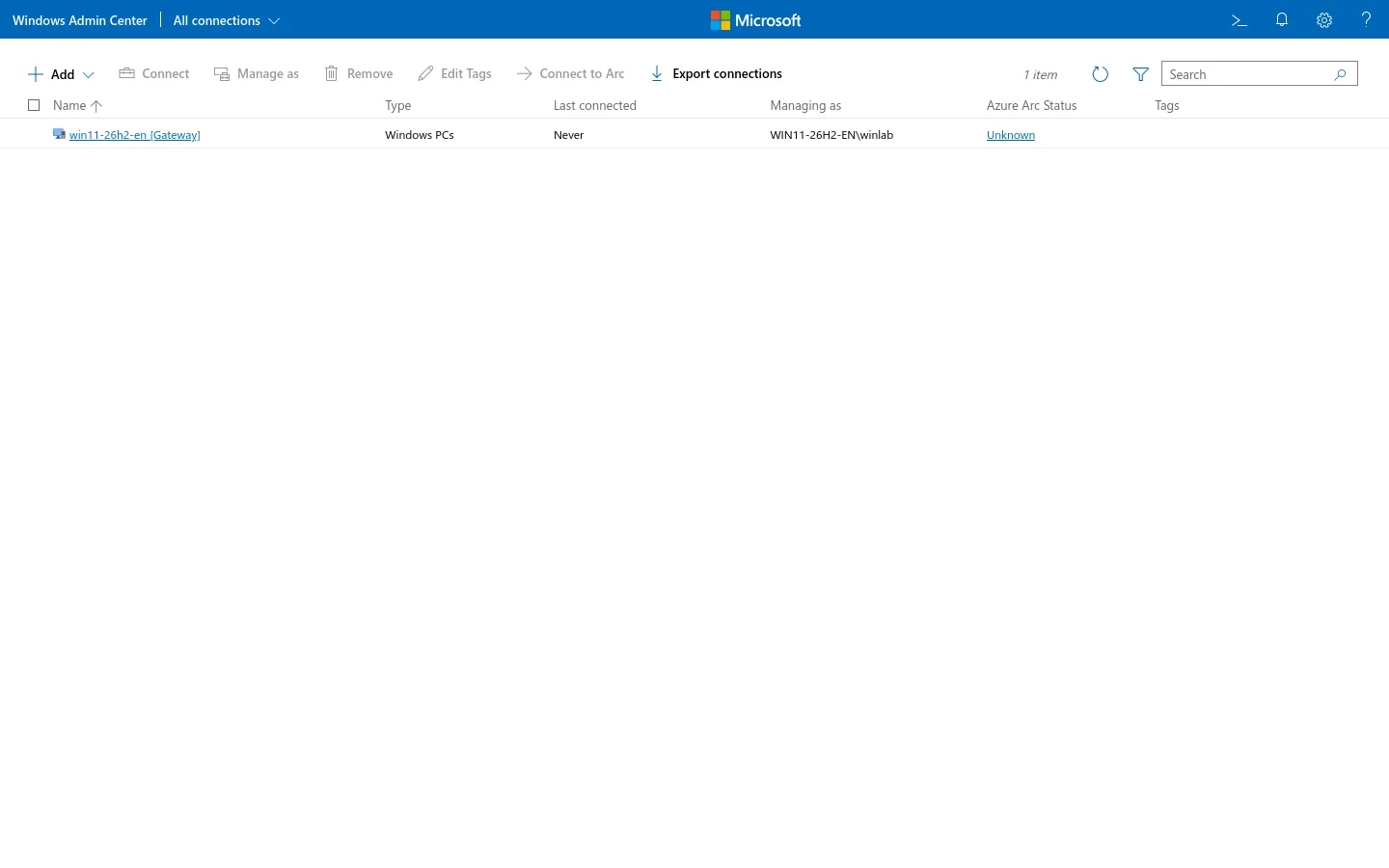

All connections: the gateway itself is listed as a Windows PC. Add servers by name or import a list.

1. Open https://<gateway>:6516/ and sign in.
2. Add → server/PC → enter the computer name.
3. Use an account that is local admin (or delegated) on the managed node, not necessarily a domain admin.
4. Provide credentials; choose “manage as” if you need a different account.
5. Open the node → Overview → check name, OS, version, RAM, tools.

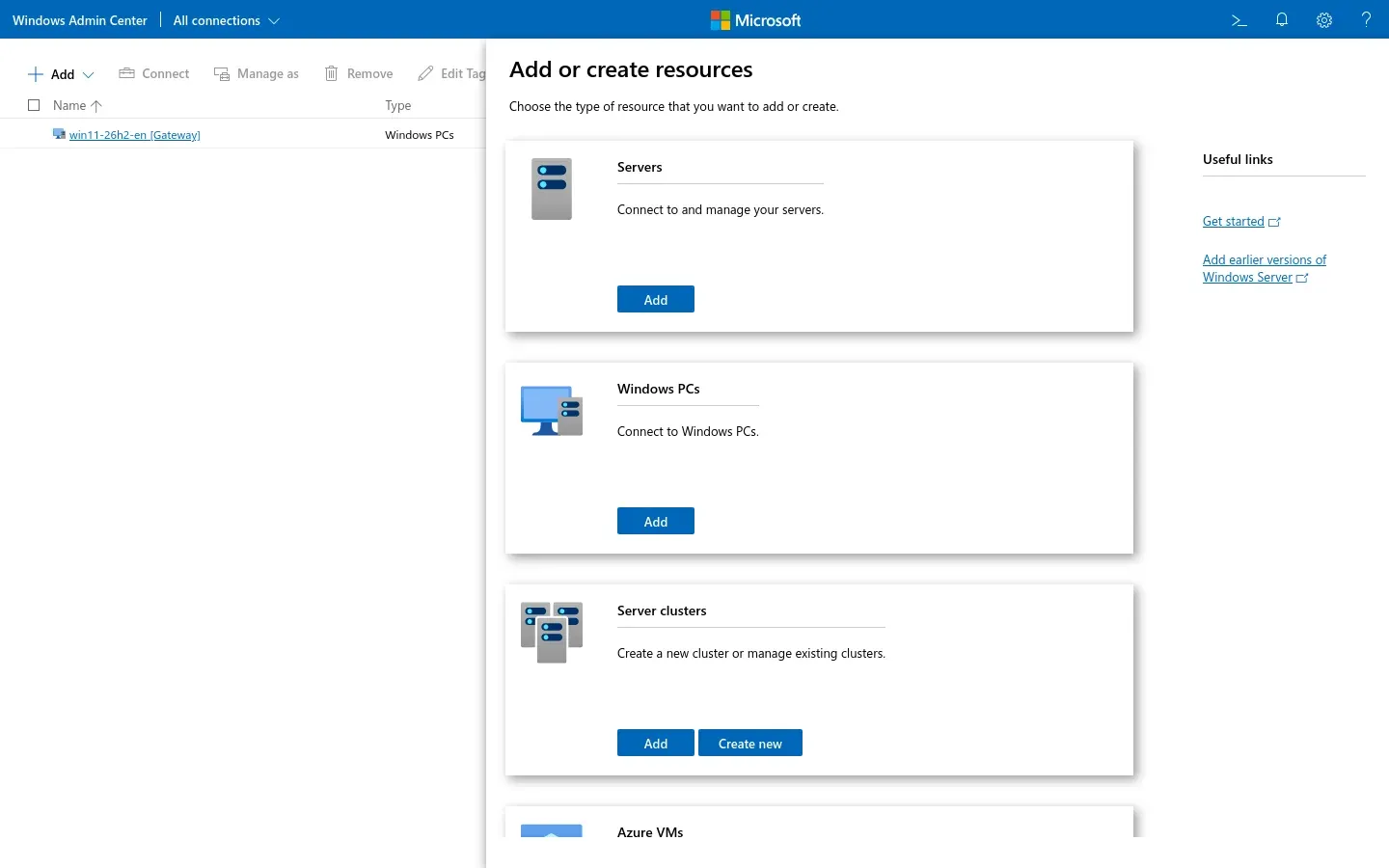

“Add or create resources”: Servers, Windows PCs, clusters and Azure VMs. The lab only added the gateway itself.

Requirements on the managed node:

• WinRM (5985/5986) reachable from the gateway;
• SMB 445 for file operations;
• DNS resolves the name;
• time is within Kerberos tolerance for domain auth;
• firewall rules for the management network, not the whole internet.

Credentials are not the same as rights

A domain admin can manage everything, which is exactly why it should not be the daily WAC account. Use server-local admin or delegated WAC access, and keep domain admin for domain-level tasks.

The tools worth knowing

Tool	Use it for	Prefer PowerShell when
Overview	Name, OS, uptime, CPU/RAM	You need history/metrics
Files & file sharing	Browse, upload/download, shares	Bulk ACL/recurse operations
PowerShell	Ad-hoc commands, quick checks	Long scripts/automation
Registry	Inspect a key	Bulk/exported changes
Services/Processes	Restart/stop, inspect	Repeatable service config
Updates	Inventory/install updates	Rings/WSUS/Intune policy
Storage	Volumes, disks, shares	Storage Spaces/detailed MPIO
Security	Defender/firewall status	Policy/EDR integration
Virtual machines	Basic VM lifecycle	Nested networking/advanced config

The PowerShell tool is not a replacement for a terminal profile or a full IDE, but it is the fastest way to prove the WinRM channel works:

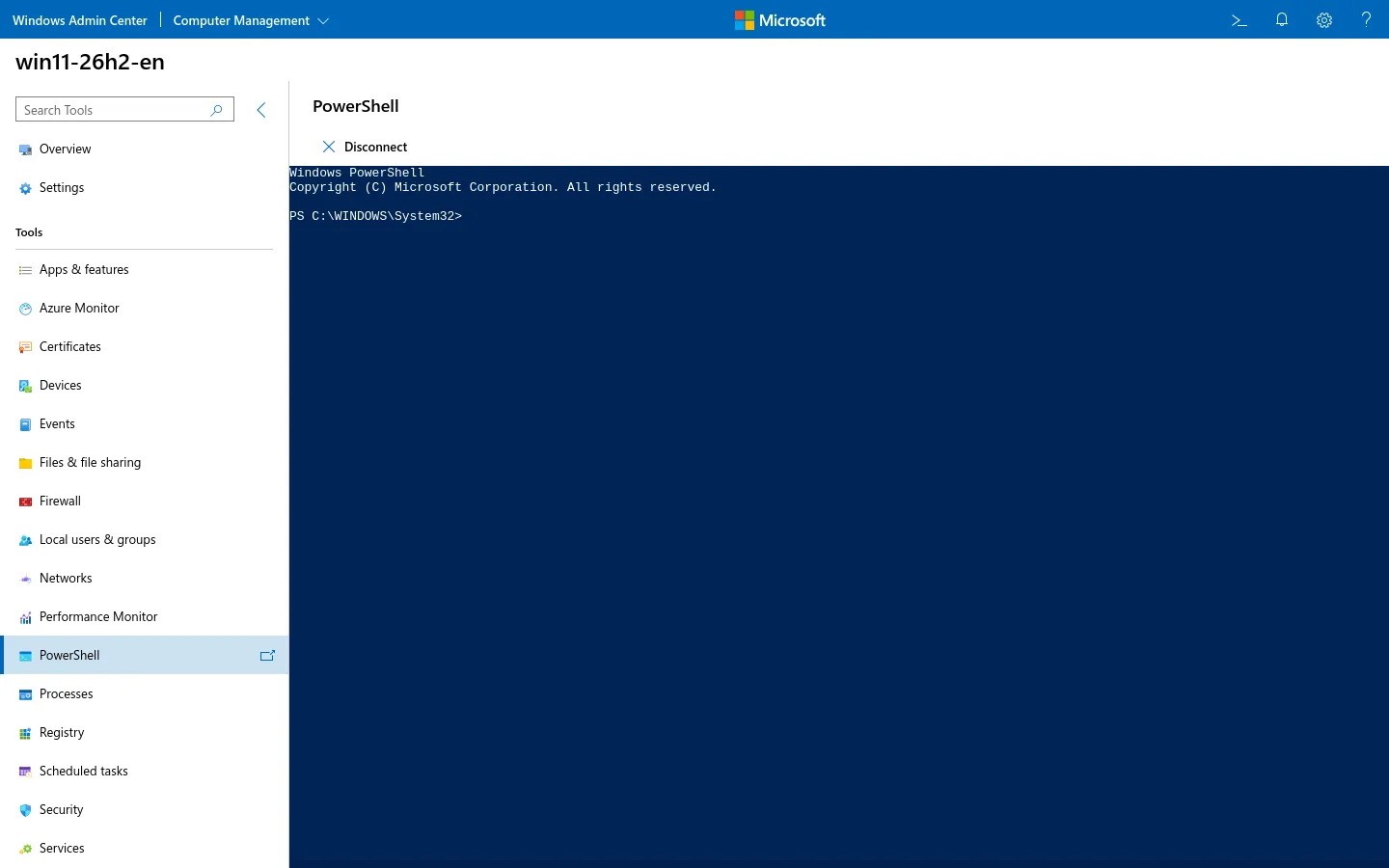

PowerShell tool: a real remote prompt through the gateway. If this loads, WinRM is working.

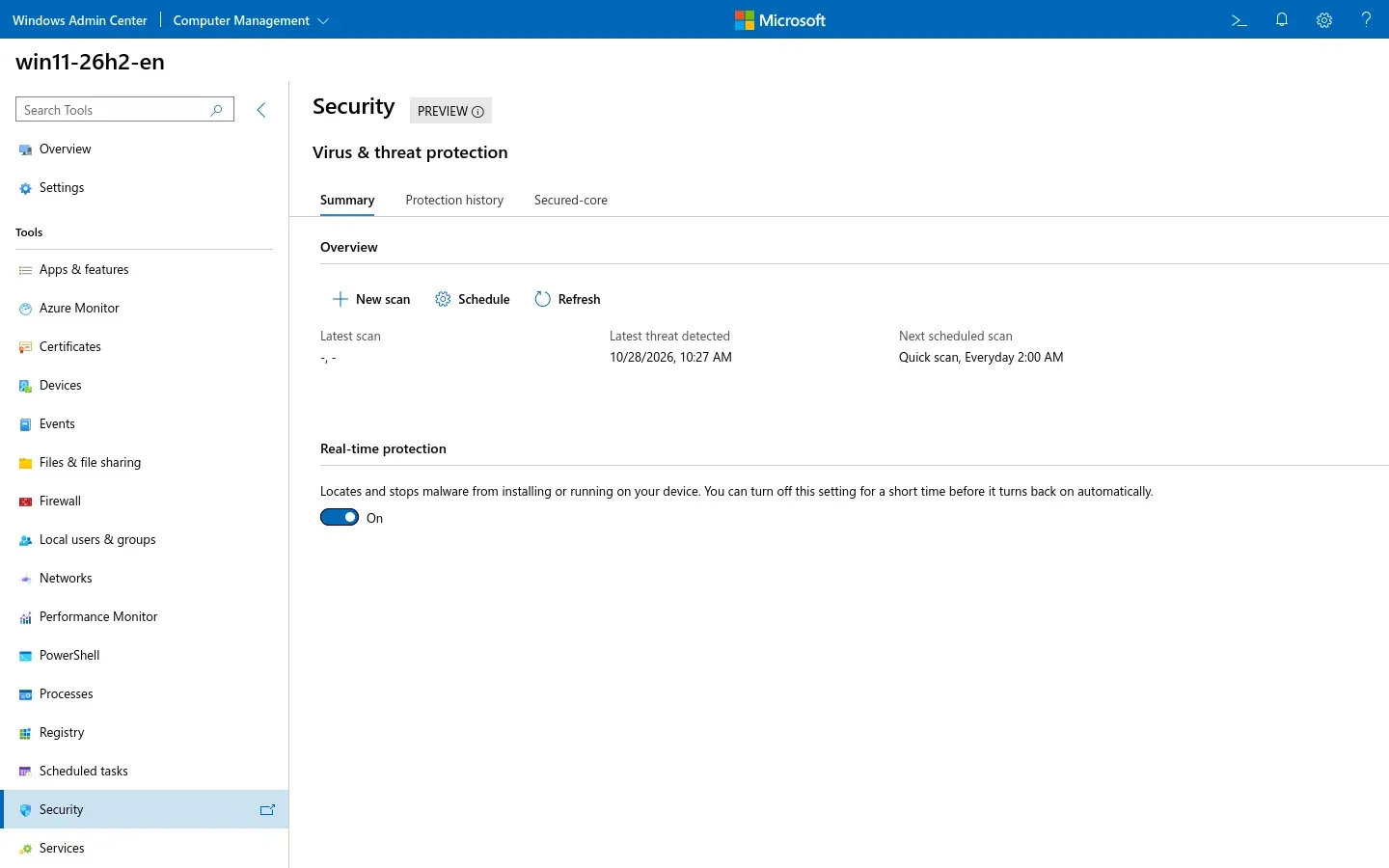

Security tool: Defender summary. It is a view, not a replacement for event/EDR history.

Security model

WAC is a management plane. Treat it like a domain controller console, not a website:

• Put it on a management VLAN/VPN; block 6516 from the internet.
• Use a trusted certificate with the gateway DNS name; self-signed is lab-only.
• Use MFA at the VPN/identity layer; WAC’s local form login is not MFA by itself.
• Use least privilege and “manage as” for specific nodes.
• Keep the gateway patched; extensions are code.
• Avoid CredSSP unless a specific tool requires it; it delegates credentials and widens the blast radius.
• Log and review sign-ins; a gateway is a high-value target.

Do not port-forward WAC

“It has HTTPS” is not a security model. Publish it only through VPN/Zero Trust, with MFA and a management network. A public WAC login page is an attack surface, not a feature.

Daily operations

• Patch the gateway monthly, like any management service.
• Update extensions deliberately; read the release notes.
• Keep a local break-glass path (RSAT/PowerShell/console) for when WAC is down.
• Document the certificate expiry and port.
• Back up WAC settings/connections if you rely on them; do not treat the gateway as the backup.
• Remove stale connections and old admin accounts.

Troubleshooting matrix

Symptom	Likely cause	Check/fix
Login page loops/403	Cookies, time, certificate, auth	Check clock, cert trust, browser cookies; try a private window
“Connecting to server” hangs	WinRM blocked	Test-WSMan <node> from gateway; firewall 5985/5986
Files fail, tools work	SMB 445 blocked	Test 445 from gateway; firewall/file sharing
Files tool stuck on “Hang on…”	SMB/extension load	Test 445; restart the gateway service; check the Files extension
Certificate warning	Self-signed/name mismatch	Install a trusted cert with the DNS name
Domain sign-in fails	DNS/time/Kerberos	Resolve-DnsName, w32tm /query /status
Tool loads but actions fail	Credentials/rights	Use “manage as” with the right local admin
Extension error	Version mismatch/gateway update	Update WAC/extensions; check logs
Cannot reach 6516	Firewall/network	Get-NetTCPConnection; management VLAN/VPN

Useful commands from the gateway:

Test-WSMan win11-26h2-en
Test-NetConnection win11-26h2-en -Port 445
Get-Service WindowsAdminCenter
Get-NetTCPConnection -State Listen | Where-Object LocalPort -eq 6516

Lab limits

• Gateway is Windows 11, not Server 2025.
• Only the gateway itself is managed; no second node, domain, Azure Arc, HA, CredSSP or enterprise CA.
• Self-signed certificate was accepted explicitly for the lab.
• The browser observation (Firefox worked, Chromium ERR_NETWORK_CHANGED through the same SSH tunnel) is not a general browser compatibility claim.
• The Files tool stayed on “Hang on…” for more than 20 seconds in this lab; it was not used as a screenshot. This is a lab observation, not a claim that Files is broken generally.

Sources

• Microsoft Learn — Windows Admin Center overviewlearn.microsoft.com
• Microsoft Learn — Install Windows Admin Centerlearn.microsoft.com
• Microsoft Learn — Manage serverslearn.microsoft.com
